Drive Manager#

Safety enforcement and command smoothing.

The Drive Manager is the final gatekeeper before commands reach your robot’s low-level interfaces. Its primary job is to ensure that every command falls within the robot’s physical limits, satisfies smoothness constraints, and does not lead to a collision.

It acts as a safety shield, intercepting velocity commands from the Controller and applying Emergency Stops or Slowdowns based on immediate sensor data.

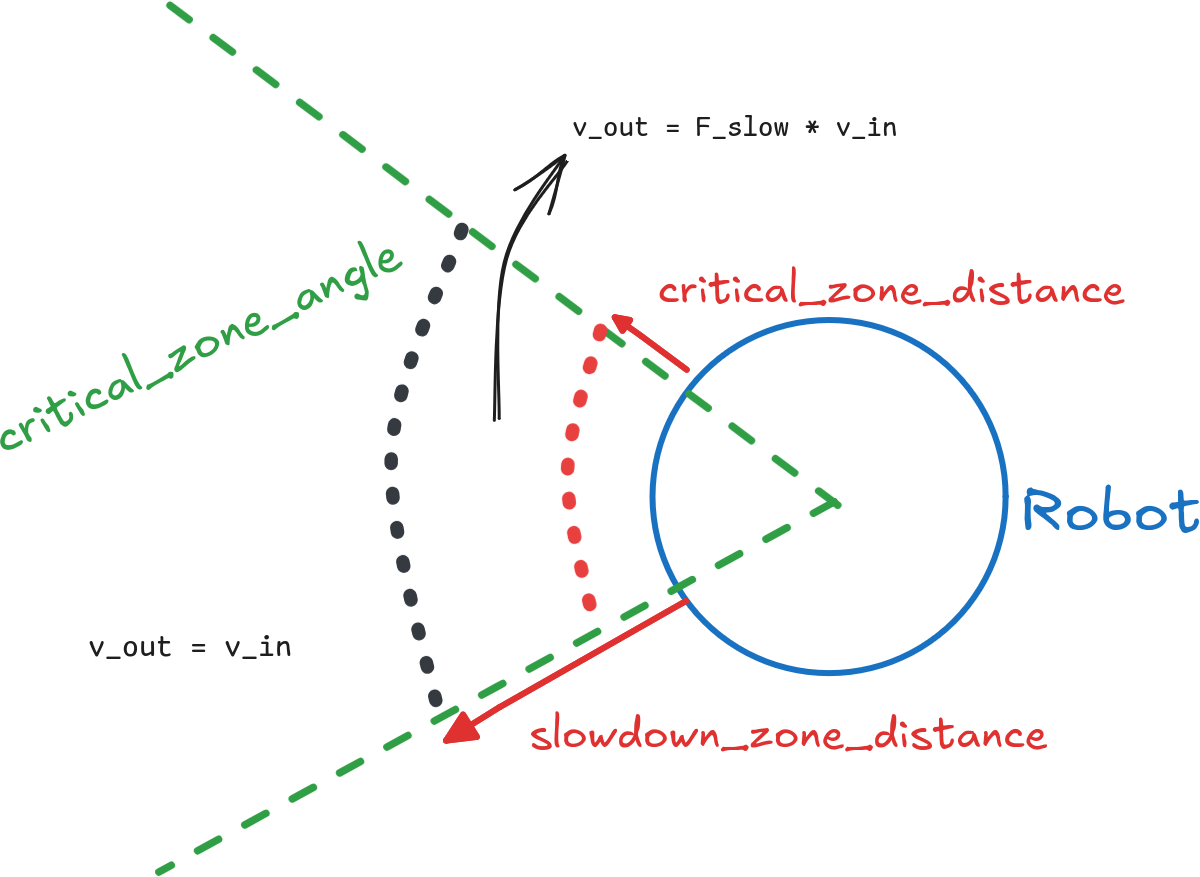

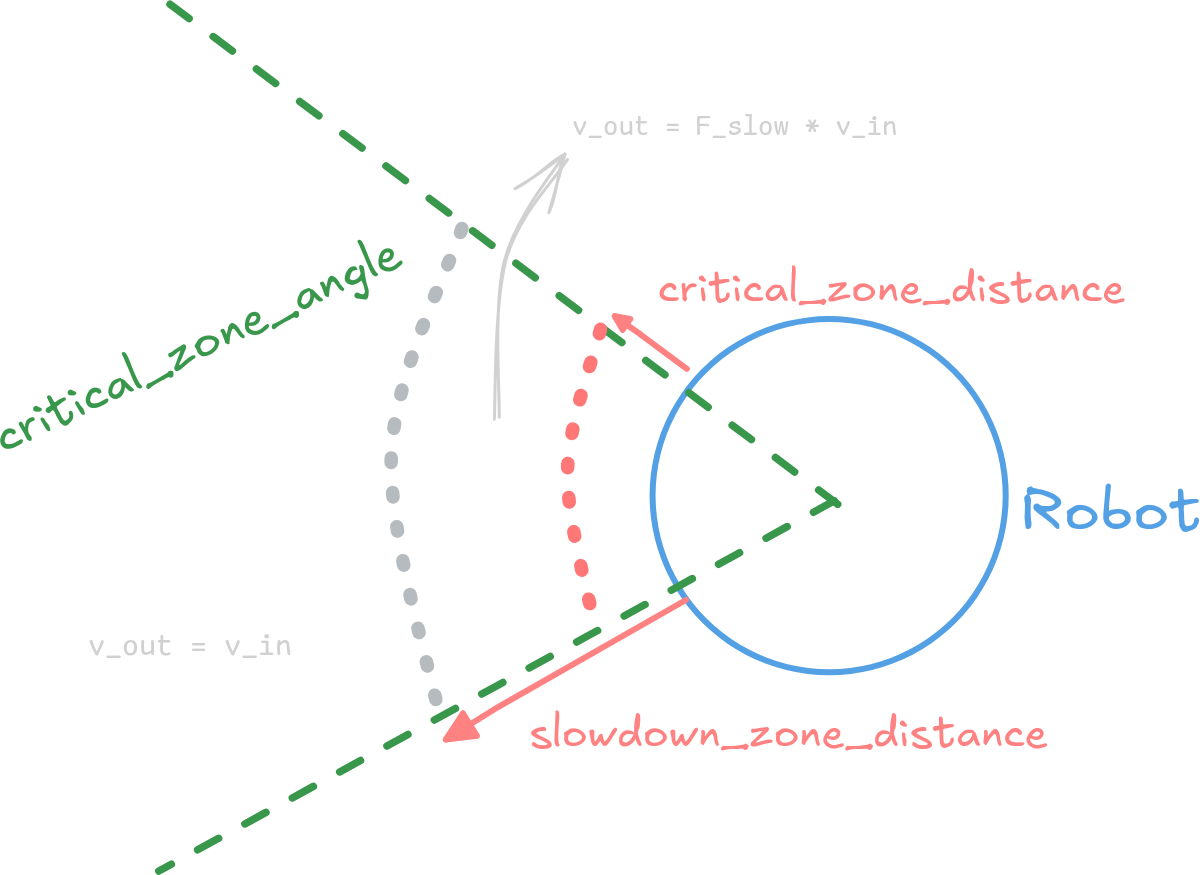

Safety Layers#

The Drive Manager implements a multi-stage safety pipeline:

Emergency Stop — Critical Zone. Checks proximity sensors directly. If an obstacle enters the configured safety distance and angle, the robot stops immediately.
Dynamic Slowdown — Warning Zone. If an obstacle enters the slowdown zone, the robot’s velocity is proportionally reduced.
Control Limiting — Kinematic Constraints. Clamps incoming velocity and acceleration commands to the robot’s physical limits.
Control Smoothing — Jerk Control. Applies smoothing filters to incoming commands to prevent jerky movements and wheel slip.
Robot Unblocking — Moves the robot forward, backwards or rotates in place if the space is free to move the robot away from a blocking point. This action can be configured to be triggered with an external event.

The safety check runs over every sensor given as sensor_data and takes the most cautious result: a LiDAR scan, any number of point clouds, from front and rear 3D LiDARs or depth cameras, fused with their mount transforms taken from TF, and single-beam Range sensors such as ultrasound, each classified into the forward or backward zone by where it is mounted. A sensor whose data is older than sensor_data_timeout is stale; by default that stops the robot, and stale_sensor_policy="skip" runs the check on the remaining sensors instead.

Note

Critical and Slowdown Zone checking is implemented in C++ in kompass-core for fast emergency behaviors. The core implementation supports both GPU and CPU (defaults to GPU if available).

Built-in Actions#

The Drive Manager provides built-in behaviors for direct control and recovery. These can be triggered via Events:

Action	Function
move_forward	Moves the robot forward for `max_distance` meters, if the forward direction is clear of obstacles.
move_backward	Moves the robot backwards for `max_distance` meters, if the backward direction is clear of obstacles.
rotate_in_place	Rotates the robot in place by `max_rotation` radians, counter-clockwise when positive and clockwise when negative, as long as the space around it is clear by `safety_margin` beyond the critical zone, 5% of the robot’s radius by default.
move_to_unblock	Recovery behavior. Automatically attempts to move forward, backward, or rotate to free the robot from a collision state or blockage. Takes optional `max_distance_forward`, `max_distance_backwards` and `max_rotation` limits.
stop_robot	Clears the command queue and publishes zero velocity until the robot is at rest, or `stop_timeout` seconds have passed. What a mission calls at every waypoint.

Every action returns (success, message), and the movement actions consult the safety sensors, a LiDAR scan, point clouds or range sensors, to check that the direction is clear before moving.

Available Run Types#

Timed

Sends incoming command periodically to the robot.

Inputs#

Key Name	Allowed Types	Number	Default
command	`geometry_msgs.msg.Twist`	1	`Topic(name="/control", msg_type="Twist")`
multi_command	`kompass_interfaces.msg.TwistArray`	1	`Topic(name="/control_list", msg_type="TwistArray")`
sensor_data	`sensor_msgs.msg.LaserScan`, `sensor_msgs.msg.PointCloud2`, `sensor_msgs.msg.Range`	1 + (10 optional)	`Topic(name="/scan", msg_type="LaserScan")`
location	`nav_msgs.msg.Odometry`, `geometry_msgs.msg.PoseStamped`, `geometry_msgs.msg.Pose`	1	`Topic(name="/odom", msg_type="Odometry")`

Outputs#

Key Name	Allowed Types	Number	Default
robot_command	`geometry_msgs.msg.Twist`, `geometry_msgs.msg.TwistStamped`	1	`Topic(name="/cmd_vel", msg_type="Twist")`
emergency_stop	`std_msgs.msg.Bool`	1	`Topic(name="/emergency_stop", msg_type="Bool")`

Configuration#

Field	Default	Effect
`critical_zone_distance`	0.05 m	An obstacle closer than this, inside the critical cone, stops the robot.
`critical_zone_angle`	45°	The width of the critical cone in front of, and behind, the robot.
`slowdown_zone_distance`	0.2 m	An obstacle closer than this slows the robot down in proportion.
`disable_safety_stop`	false	Turns the emergency stop off, for a simulator that does not need it.
`use_without_scan_sensor`	false	Runs with no safety sensor at all, which disables the movement actions’ checks.
`sensor_data_timeout`	0.2 s	Sensor data older than this is stale.
`stale_sensor_policy`	`stop`	What a stale sensor means: `stop` the robot, or `skip` that sensor.
`pc_min_height`	0.0 m	Points below this height are ignored in point clouds.
`closed_loop`, `closed_loop_span`, `cmd_tolerance`	true, 3, 0.05	Send commands in closed loop against the robot’s measured velocity.
`smooth_commands`	false	Filters incoming commands against jerk.
`use_gpu`	true	Run the zone check on the GPU when there is one.

Usage Example#

from kompass.components import DriveManager, DriveManagerConfig
from kompass.ros import Topic

# Setup custom configuration
# closed_loop: send commands to the robot in closed loop (checks feedback from robot state)
# critical_zone_distance: for emergency stop (m)
my_config = DriveManagerConfig(
    closed_loop=True,
    critical_zone_distance=0.1,    # Stop if obstacle < 10cm
    slowdown_zone_distance=0.3,    # Slow down if obstacle < 30cm
    critical_zone_angle=90.0       # Check 90 degrees cone in front and behind
)

# Instantiate
driver = DriveManager(component_name="driver", config=my_config)

# Remap Outputs
driver.outputs(robot_command=Topic(name='/my_robot_cmd', msg_type='Twist'))
